2178710-4
Manufacturer:
TE Connectivity
Mfr.Part #:
2178710-4
Datasheet:
Description:

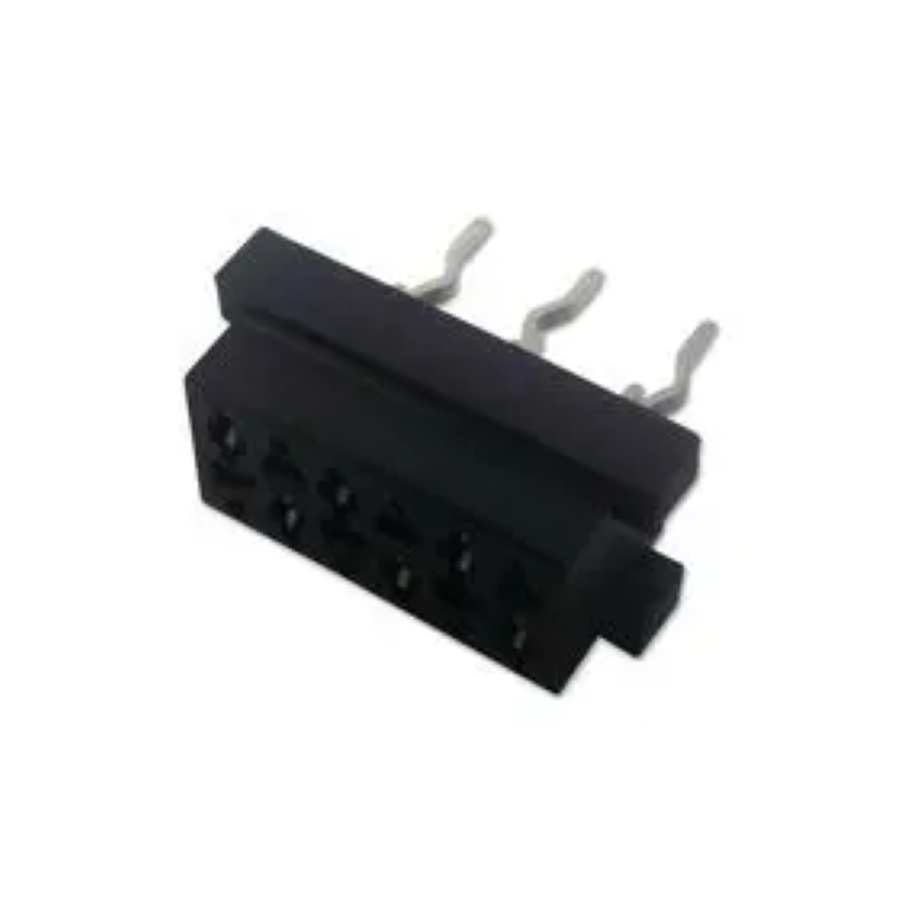

Headers and Wire Housings Through Hole Connector, Pin, Receptacle Number of Positions:4 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 7.1 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 4.064 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Non-Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.0988 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.27 mm |
| Current Rating | 850 mA |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Receptacle |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Connector, Pin, Receptacle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 1.5 mm |
| Housing Material | Polyester |
| Contact Current Rating | 1.4 A |
| Housing Color | Black |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 5 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 10 months ago) |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
